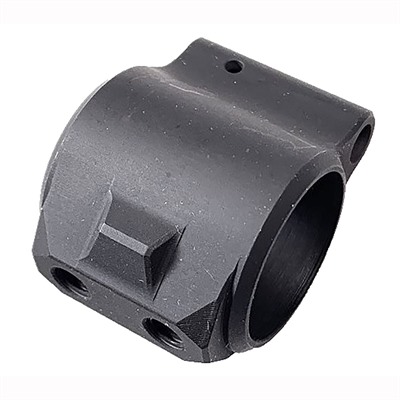

The Forward Controls Design GBF .750 is a low-profile gas block for AR-15 and AR-10 barrels with a .750 gas journal, and it's one of those parts that quietly earns its keep on a serious build. FCD started with heat-treated 4140 bar stock, machined it to tight tolerances for the best possible gas seal, and finished it in manganese phosphate so it can take the heat and shrug off the wear. The clean, trimmed-down profile isn't there to shave every last gram. FCD went the other way, keeping the material that matters for strength and dependability and only removing what doesn't do any work.
The standout detail is the semi-blind gas tube hole. Instead of drilling straight through, FCD left a small access port just wide enough for a 3/32 punch. That keeps the gas tube hole minimal while still giving you a way to knock loose a gas tube that's carbon-welded in place after a few thousand rounds. There are also machined bosses on both sides of the block, which give a gunsmith a clean reference point when it's time to pin the gas block to the barrel.
This is a set-screw block, and the two included knurled set screws sit 0.450 apart, which lines up with one of the spacing options on the SLR Rifleworks .750 dimpling jig if you like to dimple your barrel. FCD recommends Rocksett on the set screws and a torque value of 25 inch-pounds using a 3/32 wrench. If you'd rather pin it, both 5/32×5/8 and 1/8×5/8 pins work, and a coiled pin can be added as a no-cost option.
Forward Controls has a reputation for making parts that show up in spec every single time, and folks who run their gear tend to come back for more. The GBF weighs in at 1.58 ounces, ships with a gas tube pin, and is proudly designed and made in the USA. If you want a gas block you can bolt on and forget about, this is an easy one to trust.
The GBF .750 is built for AR-15 and AR-10 barrels with a .750 inch gas block journal, which is one of the most common diameters out there. If your barrel measures .750 at the gas port area, this block will seat right up. Always confirm your journal size before ordering, since some barrels use .625 or .875 instead.
It's a set-screw design, and it ships with two knurled set screws spaced 0.450 inches apart. That spacing matches one of the options on the SLR Rifleworks .750 dimpling jig if you want to dimple your barrel for a rock-solid fit. FCD recommends Rocksett on the screws and torquing them to 25 inch-pounds with a 3/32 wrench.
That small access port lets you slide a 3/32 punch in to knock loose a gas tube that's gotten stuck from built-up carbon. It's a genuinely handy feature during teardown, especially on a rifle that's seen a lot of rounds. The design keeps the gas tube hole minimal while still giving you that maintenance access.
Yes. It accepts both 5/32×5/8 and 1/8×5/8 pins, and there are machined bosses on both sides of the block to give you a clean reference point when drilling. A coiled pin can be added as a no-cost option if you want to pin rather than rely on set screws alone.
| UPC | 682157948628 |
|---|---|
| Manufacturer | |
| Manufacturer Part Number | GBF 0.750 |
| Style | Low-Profile |
