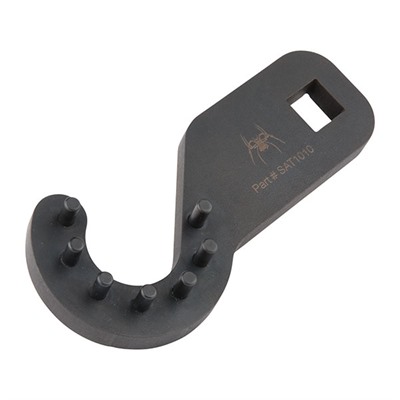

If you're building or rebuilding an AR-15 upper, the barrel nut is one spot where the right tool really earns its keep. The Spikes Tactical 7-Pin USGI Barrel Nut Wrench is purpose-made for standard GI-style barrel nuts, the ones with the scalloped notches running all the way around. It's machined from 4140 chromoly steel, heat treated, and finished in phosphate, with seven 8620 tool steel pins TIG welded into place so they grab the nut evenly and don't wallow out over time.
This is a wrench head, not a full armorer's tool, which keeps it compact and focused. The seven pins seat into the notches of a standard barrel nut to spread the load and keep you from chewing up the nut or slipping into your upper receiver. It fits standard mil-spec AR-15 barrel nuts, so it's a natural match for A2 front sight builds, free-float handguard installs, and delta ring removal.
The heart of this tool is the 1/2" square drive cutout. Drop in a 1/2" torque wrench to dial in your final spec, which on a standard barrel nut usually lands somewhere in the 30 to 80 ft-lb window, then rotate until the next notch lines up with the gas tube hole. When it's time to break a stubborn nut loose, a 1/2" breaker bar or ratchet gives you the leverage without putting your torque wrench's calibration at risk.
Owners tend to praise this wrench for its solid feel and the fact that the welded pins hold up build after build. Whether you're a weekend DIY builder knocking out your first upper or a shop doing them all day, having a dedicated barrel nut wrench means cleaner installs, proper gas tube alignment, and no improvised nonsense that strips threads. Grease your threads, torque to spec, and this one does its part.
It's designed for standard GI-style AR-15 barrel nuts, the kind with the scalloped notches all the way around. That covers a lot of common mil-spec builds, A2 front sight setups, and many free-float handguard systems that use a standard threaded upper. If your handguard uses a proprietary barrel nut, check that it matches a standard GI pattern before relying on this wrench.
Yes, and you'll want one. The wrench has a 1/2" square drive cutout that accepts a 1/2" torque wrench so you can hit your final torque spec, which on a standard barrel nut is generally in the 30 to 80 ft-lb range. For breaking a tight nut loose, use a 1/2" breaker bar or ratchet instead so you don't throw off your torque wrench's calibration.
This is a dedicated barrel nut wrench head rather than a multi-function armorer's wrench with a built-in handle. It keeps things compact and focused on one job, driven by whatever 1/2" torque wrench or breaker bar you already own. If you want castle nut and flash hider notches built into one tool, a full armorer's wrench is a different style of product.
The body is 4140 chromoly steel that's heat treated and phosphate finished, with seven 8620 tool steel pins TIG welded into place. That construction is what lets the pins grip the nut evenly without deforming over repeated builds. Builders consistently note it feels solid and takes abuse well, which is exactly what you want when you're leaning on a breaker bar.
| UPC | 815648020705 |
|---|---|
| Manufacturer | |
| Manufacturer Part Number | SAT1010 |
| Quantity | 1 |
| Style | Barrel |
