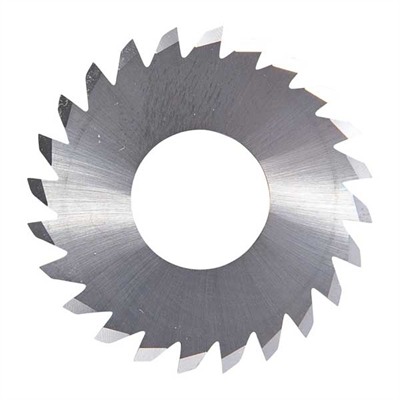

EGW 60 Degree Carbide Slitting Saw for 1911 Slide Work – 70712

UPC: 841370108770

$157.99

1 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

The EGW 60-degree slitting saw is the tool you reach for when you want crisp, repeatable layout work on a 1911 slide. It's cut from solid carbide, so it keeps a sharp edge through hardened steel that would chew up a lesser cutter. The 60-degree included angle makes it a natural fit for laying out checkering lines and cutting French cuts along the top of the slide, giving your custom work that clean, professional finish.

What the 60 Degree Slitting Saw Is Built For

This is a precision cutter meant for the mill, not a general-purpose blade. The 60-degree geometry is specifically about layout and detail work rather than the deep cocking serrations you'd cut with the square or 15-degree versions in the EGW lineup. If you're scribing checkering lines or adding French cuts to dress up a slide top, this is the profile that gets you there. It runs a 24-tooth cut, which balances a smooth finish with clean chip clearance on hardened material.

Getting the Most Out of Your EGW Carbide Saw

Carbide is hard but it doesn't like being pushed past its limits, so respecting feed and speed matters. EGW's recommended feed rate for 4140 chrome-moly at 42 Rc is about 4 inches per minute at 610 RPM, which gives you a good starting point for setup. For the cleanest, most consistent results, most folks run this saw alongside EGW's 1911 Auto Gunsmith Plate, which is sold separately and helps index the slide accurately under the cutter.

With a 1.250-inch diameter, a 1/16-inch thickness, and a 1/2-inch arbor, it fits standard mill setups without any fuss. It's American-made and built to be a long-term addition to a gunsmith's tooling rather than a throwaway. If custom 1911 slide work is part of what you do, this saw earns its keep.

Key Specifications

  • Manufacturer: EGW
  • Manufacturer Part Number: 70712
  • UPC: 841370108770
  • Included Angle: 60 Degree
  • Material: Solid Carbide
  • Diameter: 1.250 in
  • Thickness: 1/16 in
  • Arbor Size: 1/2 in
  • Tooth Count: 24 Tooth
  • Recommended Feed: 4 in/min at 610 RPM (4140 CM at 42 Rc)
  • Primary Use: Checkering layout and French cuts on 1911 slides
  • Country of Origin: Made in USA

What’s Included

  • EGW 60 Degree Carbide Slitting Saw (1 saw)

Frequently Asked Questions

What is the EGW 60 degree slitting saw used for?

It's designed for laying out checkering lines and cutting French cuts along the top of a 1911 slide. The 60-degree included angle is meant for that detail and layout work rather than the deep cocking serrations. For serrations you'd typically use the square or 15-degree saws in EGW's lineup.

What are the mounting dimensions of this carbide slitting saw?

The saw measures 1.250 inches in diameter and 1/16 inch thick, with a 1/2 inch arbor hole. Those dimensions fit standard milling machine setups without any special adapters. It runs a 24-tooth cut for a smooth finish on hardened steel.

What feed rate should I run with the EGW slitting saw?

EGW recommends a feed rate of about 4 inches per minute at 610 RPM when cutting 4140 chrome-moly at 42 Rc. That's a solid starting point, and you may want to adjust slightly based on your specific material and machine. Running carbide within its limits is the key to a clean cut and long tool life.

Do I need anything else to use this saw effectively?

For the most accurate and repeatable results, EGW recommends pairing it with the 1911 Auto Gunsmith Plate, which is sold separately. The plate helps index the slide under the cutter so your layout stays consistent. The saw itself mounts on a standard milling machine arbor.

Additional information

UPC

841370108770

Manufacturer

Manufacturer Part Number

70712

Reviews

There are no reviews yet.

Be the first to review “EGW 60 Degree Carbide Slitting Saw for 1911 Slide Work – 70712”
