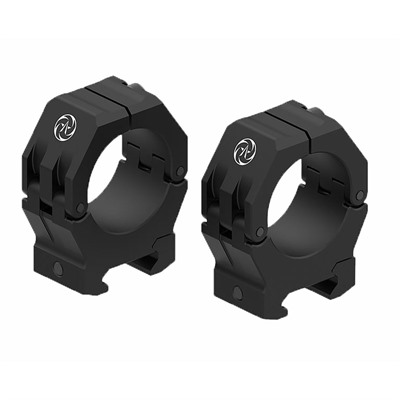

The M-Brace 30mm X-Low rings from American Rifle Company are built around one simple idea: your scope shouldn't twist out of alignment just because you're torquing down the clamp screws. These split rings apply clamping force symmetrically, so your reticle stays where you set it instead of rolling as you alternate between screws. That means less fuss getting your crosshair plumb and a cleaner install from the start. At 0.79 inches measured from the optical centerline to the top of the rail, this is the lowest height in the M-Brace 30mm lineup, which is ideal for getting a slim optic sitting as close to the bore as possible.
Most rings grip your scope just fine until the recoil starts stacking up. The M-Brace design holds firm under heavy recoil without marring or indenting the tube, so you aren't trading security for scratches on an expensive optic. The rail interface is cut to engage Picatinny (MIL-STD-1913) slots precisely, even on rails that don't quite hit spec, and that tight fit is a big part of why these rings deliver the return-to-zero performance they're known for. Pull the scope off and reseat it, and it goes right back where it was.
Every set is CNC machined from high-strength 7075 aluminum and fully anodized for a durable matte-black finish that shrugs off corrosion. These are made in the USA and engineered more like a precision component than a throwaway accessory, which is why they've earned a loyal following among precision bolt gun owners. The low 0.79" height keeps the rings out of your sight picture and leaves plenty of clearance to read and dial your turrets.
Installation is straightforward. A light touch of oil or anti-seize on the threads, center the hinge pins before tightening, and torque the scope clamp and rail screws to 55 in-lbs. If you're mounting an older or vintage scope, backing the starting torque down to around 40 in-lbs is the safe move to protect a thinner tube.
The 0.79 inch figure is measured from the optical centerline of your scope down to the top of the Picatinny rail. This is the lowest height offered in the M-Brace 30mm series, so it's meant for mounting a scope as close to the bore as the objective bell will allow. Check your objective diameter against your rail before ordering to make sure you'll clear the barrel and any rear sight.
These are built specifically for scopes with a 30mm main tube. American Rifle Company makes the M-Brace in other diameters like 34mm, 35mm, and 36mm, so match the ring to your scope's tube spec rather than the objective or eyepiece size.
The split-ring design applies clamping force symmetrically, so as you tighten the screws your scope doesn't twist in the rings the way it can with conventional designs. That keeps your reticle plumb through the whole install and is a big reason the rings return to zero so reliably if you ever pull the scope and reseat it. Center the hinge pins before you torque things down for the cleanest result.
The M-Brace X-Low rings are cut to fit Picatinny (MIL-STD-1913) rails and engage the slots precisely even on rails that run slightly out of spec. Torque both the scope clamp and rail clamp screws to 55 in-lbs (6.2 Nm). For older or vintage scopes with thinner tubes, start lower at around 40 in-lbs to avoid deforming the tube.
| UPC | 810094450052 |
|---|---|
| Manufacturer | |
| Manufacturer Part Number | MB-R-30-20 |
| Style | PICATINNY |
