Description
This is the Redding Type S-Match Bushing Full Length Die Set for the 300 WSM, part number 36223. It's a two-die precision package built for handloaders who want real control over neck tension while still full length sizing the case body in a single pass. The big draw here is the bushing system, which lets you tune the exact amount of neck sizing you want instead of settling for whatever a standard die gives you.
What the 300 WSM Bushing Full Length Die Set Does
The Type S full length sizing die resizes the body, bumps the shoulder for easy chambering, and sizes the neck using an interchangeable bushing. Bushings come in .001-inch increments, so you can measure your loaded neck diameter and pick the bushing that gives you the neck tension you're after. The bushings self-center in the die to help concentricity, and the adjustable decapping rod lets you position the bushing to size only part of the neck when you want to. Pull the bushing and internals out and the same die works as a body die, which is a nice bit of versatility for the price.
Seating Side of the 300 WSM Type S-Match Set
The set includes Redding's Competition Seating Die, which runs a micrometer adjusting head and a sliding sleeve. That sleeve fully captures the case and aligns the bullet before seating starts, which pays off in straighter rounds and more consistent seating depth. The micrometer head makes repeatable depth changes quick, so moving your seating depth to chase a node is a simple dial adjustment rather than guesswork.
Good to Know Before You Buy the 36223 Set
The die comes with a standard sizing button plus a decapping pin retainer, so folks who turn or sort necks can size without the button if they prefer. Keep in mind the bushings and the shellholder are sold separately, so you'll want to grab the right bushing for your brass and a 300 WSM shellholder to go with this set. Everything is made in the USA to the standard Redding is known for.
Key Specifications
- Manufacturer: Redding
- Manufacturer Part Number: 36223
- UPC: 611760362231
- Caliber: 300 Winchester Short Magnum (300 WSM)
- Die Type: Type S-Match Bushing Full Length Die Set
- Number of Dies: 2
- Sizing Die: Type S Bushing Full Length Sizing Die
- Seating Die: Competition Seating Die with micrometer head and sliding sleeve
- Bushing Adjustment: Interchangeable bushings in .001-inch increments
- Bushings Included: No, sold separately
- Shellholder Included: No, sold separately
- Country of Origin: United States

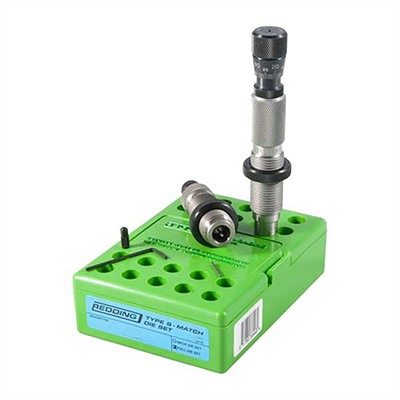

What’s Included
- One Redding Type S Bushing Full Length Sizing Die with decapping rod, standard sizing button, and decapping pin retainer
- One Redding Competition Bullet Seating Die with sliding sleeve and micrometer adjusting head
- Plastic storage box
- Instructions
Frequently Asked Questions
Does the 300 WSM Type S-Match die set come with bushings?
No, the bushings are sold separately so you can choose the exact size you need. Bushings are offered in .001-inch increments, which lets you dial in neck tension based on your brass and chamber. Measure the neck diameter of a loaded round and work back from there to pick the right one.
Is a shellholder included with the 36223 set?
No, the shellholder is not included and needs to be purchased separately. You'll want a shellholder sized for the 300 WSM case head. Most standard magnum shellholders that fit the 300 WSM rim will work with this set.
Can the Type S full length sizing die be used as a body die?
Yes, it can. By removing the bushing and the internal parts, the Type S full length die works as a body die for sizing the case body and bumping the shoulder without touching the neck. That gives you extra flexibility without buying a separate tool.
What makes the Competition Seating Die different from a standard seater?
The Competition Seating Die uses a sliding sleeve that fully captures and aligns the case before the bullet starts seating, which helps produce straighter, more consistent rounds. It also has a micrometer adjusting head for quick, repeatable seating depth changes. That combination is a big help when you're chasing accuracy and want to fine-tune depth.
