Description

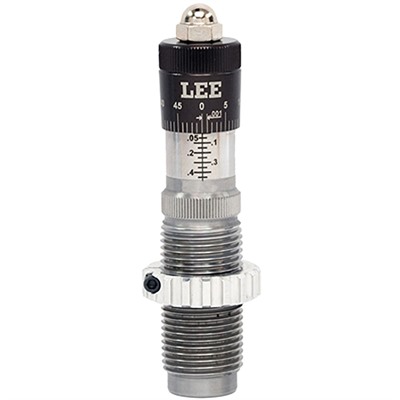

The 25-20 Winchester is a classic little cartridge with a loyal following, and getting consistent seating depth is where accuracy really comes together. This Lee Precision Micrometer Bullet Seating Die gives you that control on your own bench. The laser engraved micrometer thimble reads just like a precision depth micrometer, with each division marking one thousandth of an inch, so you can fine tune seating depth and come right back to your proven setting whenever you need to.
What sets this die apart from a standard seater is how carefully it keeps everything in line. The case mouth and bullet are held in alignment by a floating bullet guide that has radial clearance built in, letting the case and guide settle perfectly against the seater screw. Lab testing showed this sliding guide produces cartridges with very low bullet runout, which is exactly what you want from a cartridge like the 25-20 where small details show up on paper. The seating stem is machined and burnished so it contacts almost any bullet nose shape without leaving a mark.
Dialing In Your 25-20 Winchester Seating Die
Adjustment is smooth with no detents or clicks to fight, just turn to your number and lock it in. Used as a dead length seater, the die body contacts the shell holder to give you uniform seating depth from the first round to the last. That repeatability is the whole point of a micrometer top, and it saves a lot of trial and error once you find the load your rifle likes.
Seat and Crimp in One Pass with the 25-20 Micrometer Die
Here is a handy touch that is exclusive to Lee: the floating bullet guide is reversible. Unthread it and reinstall it the other way, and the die will seat and crimp in a single operation. It uses the industry standard 7/8-14 thread, so it threads right into any standard single stage or turret press. Like the rest of the Lee lineup, it is machined and assembled in the USA and backed by their lifetime guarantee.
Key Specifications
- Manufacturer: Lee Precision
- Manufacturer Part Number: 92289
- UPC: 734307922894
- Cartridge: 25-20 Winchester (25-20 WCF)
- Die Type: Precision Micrometer Bullet Seating Die
- Quantity: 1 die (single)
- Thread Size: 7/8-14 standard
- Adjustment: Laser engraved micrometer, .001 inch divisions
- Alignment: Floating bullet guide, reversible for seat and crimp
- Body: Laser engraved one piece
- Country of Origin: Made in USA
- Warranty: Lifetime guarantee
What’s Included
- Lee Precision 25-20 Winchester Precision Micrometer Bullet Seating Die (single die)
Frequently Asked Questions
Is this a complete die set or just the bullet seating die?
This is the single Precision Micrometer bullet seating die for 25-20 Winchester, sold on its own. You will still need a sizing die and the correct shell holder to load complete rounds. It pairs well with the rest of your 25-20 Win reloading setup if you already have a sizer.
Can the 25-20 Winchester micrometer die seat and crimp at the same time?
Yes. The floating bullet guide is reversible, so you simply unthread it and reinstall it the other way to seat and crimp in one operation. That convertible design is a feature exclusive to Lee.
Will this die fit my press?
It uses the industry standard 7/8-14 thread, so it threads into virtually any standard single stage or turret press. If your press takes common reloading dies, this one will work just fine.
How precise is the micrometer adjustment on this seating die?
The laser engraved thimble reads like a depth micrometer, with each division representing one thousandth of an inch. Adjustment is smooth with no clicks, so you can dial in a seating depth and return to it exactly whenever you reload.
