Description

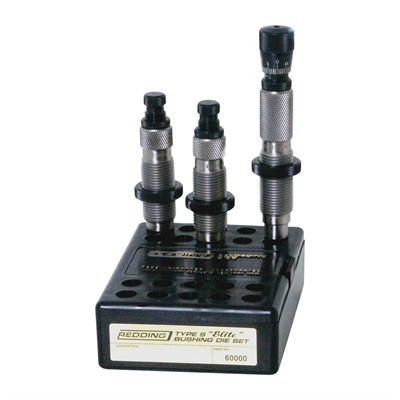

This is Redding's top-shelf bushing setup for the 204 Ruger, built for handloaders who want total command over how their cases are sized and how their bullets are seated. The Type S-Elite covers both camps in one box: full length resizing when you want brass that chambers easy every time, and neck-only sizing when you're loading for a single rifle and chasing the last bit of concentricity. That flexibility is the whole point of the Elite designation, and it's a big part of why serious 204 shooters reach for it.
What Makes the Type S-Elite Set Different
Both the full length and neck sizing dies use Redding's interchangeable neck bushings, which let you control neck tension in .001 inch increments. The bushings float so they self-center on the case neck, and because you're only sizing the neck down as much as you actually need, you avoid overworking the brass. That means more consistent neck tension round to round and noticeably longer case life, which matters when good 204 Ruger brass isn't always sitting on the shelf. Bushings come in hardened steel or with a TIN coating for extra lubricity, and they're sold separately so you can match them to your chamber and brass.
Seating Bullets Straight with the Competition Die
The third die is Redding's Competition Seating Die, widely considered the standard for straight-line bullet seating. The sliding sleeve captures and aligns the case before the seating stem ever touches the bullet, which keeps runout to a minimum. The micrometer top adjusts seating depth in clean .001 inch clicks, so load development and depth changes are fast and repeatable. It ships with a standard seating stem that handles most bullet shapes, and a VLD stem is available separately for long, pointed match bullets.
Dialing In Your 204 Ruger Loads
The little 204 thrives on consistency, and this set gives you the tools to deliver it. All three dies use the standard 7/8-14 threads and drop right into any common single stage press. Pair it with quality brass and a proven powder charge and you've got everything you need to build match-grade ammo for varmint work or paper punching at distance.
Key Specifications
- Manufacturer: Redding
- Manufacturer Part Number: 60287
- UPC: 611760602870
- Caliber: 204 Ruger
- Set Type: Type S-Elite Bushing 3-Die Set
- Number of Dies: 3
- Dies Included: Type S Bushing Full Length Sizing Die, Type S Bushing Neck Sizing Die, Competition Seating Die
- Neck Tension Adjustment: Interchangeable bushings in .001 inch increments
- Seating Adjustment: Micrometer, .001 inch increments
- Die Threads: 7/8-14
- Material: Alloy steel
- Country of Origin: Made in USA
What’s Included
- Type S Bushing Full Length Sizing Die
- Type S Bushing Neck Sizing Die
- Competition Seating Die with standard seating stem
- Die box with instructions
Frequently Asked Questions
Are neck bushings included with the Type S-Elite 204 Ruger set?
No, bushings are sold separately so you can choose the exact size that matches your brass and chamber. You'll want to measure a loaded round's neck diameter and subtract a couple thousandths for your target neck tension to pick the right bushing. Redding offers them in hardened steel and TIN coated versions.
What's the difference between the full length die and the neck die in this set?
The full length bushing die sizes the whole case body and bumps the shoulder back so rounds chamber easily, which is ideal for brass fired across different rifles or for semi-autos. The neck bushing die only works the neck and leaves the body fired-formed to your chamber, which many shooters prefer for single-rifle accuracy loads. Having both in one set lets you switch approaches whenever you want.
Does the Competition Seating Die work with all 204 bullets?
It ships with a standard seating stem that handles the majority of bullet profiles you'll load in 204 Ruger. For long, sharp VLD-style match bullets, Redding offers a separate VLD seating stem that fits the nose better. The die is not intended for heavily compressed powder charges.
Do I need a shell holder with this 204 Ruger die set?
Yes, a shell holder is sold separately and is required to hold the case in your press. The 204 Ruger uses the same shell holder as the 223 Remington family since they share a case head. One shell holder covers you for both cartridges.
