Yankee Hill Phantom QD Flash Hider 30 Cal 5/8×24

Description

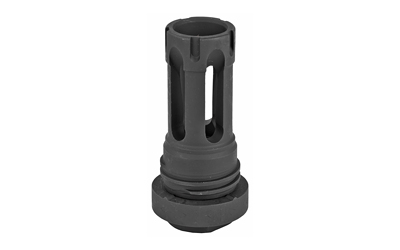

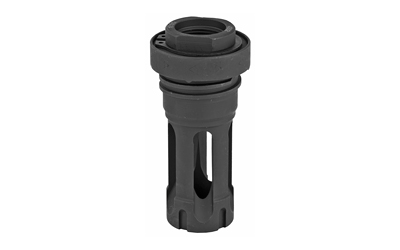

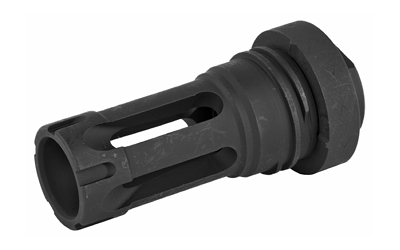

The Yankee Hill Machine Phantom Q.D. Flash Hider is a muzzle device intended for use with YHM .30 caliber Phantom LT/LTA quick-disconnect sound suppressors and for reducing visible muzzle flash when a suppressor is not mounted. It features a quick-disconnect interface with a dust enclosure that protects internal moving parts and carbon scrapers that help clear carbon from the internal support system. The device is made of steel with a blued/black finish and is configured for AR-platform rifles using a 5/8×24 thread pattern.

Key Specifications

• The thread pattern is 5/8×24 tpi.
• The compatible caliber is .308 / 7.62 NATO (30 Cal).
• The material is Steel.
• The finish is Black (Blued).
• The model designation is Phantom.
• The listed weight is 0.30000000000000004.
• The muzzle device length is 2.6 inches.
• The length added to the barrel is 1.993 inches (on barrels with 0.6″ threads).
• Design features include Carbon Scrapers, Dual Support System, 5-port design, External Locking Mechanism, and Dust Enclosure.
• Compatibility includes YHM .30 cal Phantom LT/LTA and legacy .30 caliber suppressors; will NOT accommodate YHM 5.56 Phantom or Phantom M2 suppressors.

Constructed to integrate with YHM quick-disconnect suppressor systems, this Phantom Q.D. flash hider provides a durable mounting interface and features intended to manage carbon and alignment while minimizing visible flash. Its steel construction and proven Q.D. features make it a straightforward option for operators running YHM .30-caliber suppressors on AR-platform rifles who need reliable installation and removal without sacrificing component protection.
