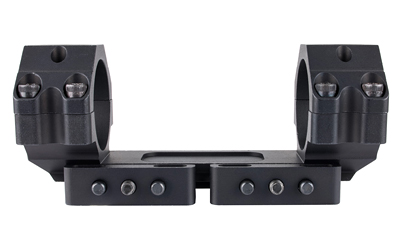

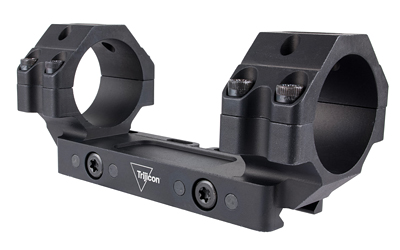

Trijicon Bolt Action 30mm Scope Mount, 1.06 in Height

Description

The Trijicon Bolt Action Mount is a low-profile mounting solution engineered to position optics as close to the bore axis as practical for bolt-action rifles. It is machined from Mil‑Spec drop-test rated 6061-T6 aluminum and finished in matte black anodize for corrosion resistance and a subdued appearance. The mount accepts a 30mm optic tube and is specified to sit 1.06 inches above the mounting rail, providing a compact sightline for hunting and precision rifle setups. Designed for use on Mil‑Spec/NATO Picatinny rails, the mount includes rings and is sized to accommodate objective lenses up to 42 mm.

Key Specifications

• The tube size is 30mm.
• The distance from the top of the mounting rail to the optical axis is 1.06 inches (26.92 mm).
• The mount is made from 6061-T6 aluminum.
• The finish is matte black anodized.
• The overall length is 4.74 inches (120.4 mm).
• The width is 1.95 inches (49.53 mm).
• The mount fits objective lenses up to 42 mm.
• The mount is compatible with Mil‑Spec/NATO Picatinny rails.
• The rail torque specification is spring tension only: 12-16 in-lbs; can be tightened to 30-38 in-lbs.
• The ring cap torque specification is 14-16 in-lbs.

This slimline mount delivers repeatable return-to-zero performance in a lightweight package, ideal for hunters and precision shooters who need a compact sightline without sacrificing rigidity. Its flush bolt configuration maintains a low profile on the receiver while the anodized 6061-T6 construction provides durable service in field conditions. With included rings and compatibility for common variable-power optics, this mount is a practical choice for bolt-action platforms where a reliable, low optical axis is required.
