Description

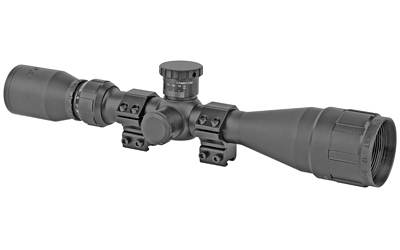

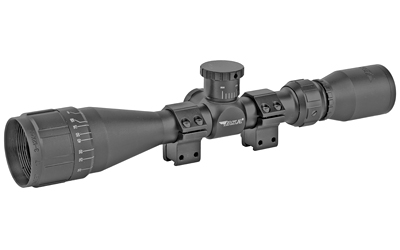

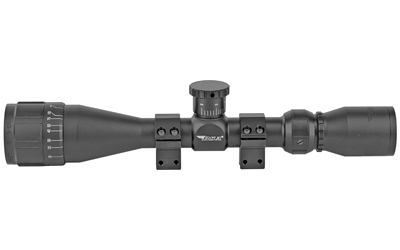

The BSA Sweet 17 AO rifle scope is purpose-built for the .17 HMR cartridge, offering optics and controls tuned for small-caliber precision. The 3-12x magnification range and 40mm objective balance long-eye relief with usable low-light performance. It includes an adjustable objective for parallax correction, fully multi-coated lenses for improved light transmission, and a 30/30 Duplex reticle for clear, familiar aiming reference. The elevation turret is ballistically calibrated to common 17gr (and 20gr) loads and the package ships with dovetail mounting rings.
Key Specifications
- The magnification range is 3-12x for versatile target presentation at short to mid ranges.
- The objective diameter is 40mm AO with an adjustable objective for parallax correction.

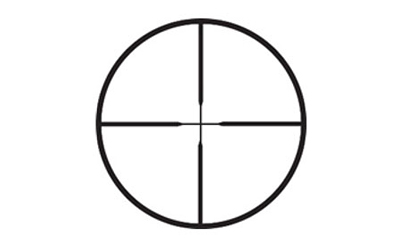

- The reticle is a 30/30 Duplex for straightforward aiming and reference.
- The tube diameter measures 1″ to match common dovetail mounts.
- The ocular eye relief provides 4″ of clearance for comfortable sighting.
- The field of view is 33 ft @ 100 yds for a broad visual area at low magnification.
- The overall length is 12.13″ for a compact profile on many rifles.
- The weight is 22.70 oz keeping the optic light for carry and handling.
- The windage/elevation adjustment size is .25 MOA for precise zeroing.
- The optics are Fully Multi-Coated and the body is rated Fog/Shock/Waterproof.
Built to support precise small-caliber shooting, the Sweet 17 AO delivers a practical combination of glass quality, calibrated elevation, and durable construction. Whether you’re setting up for varmint work or precision rimfire-style shooting with .17 HMR loads, this scope provides the features and optical clarity to make consistent hits more attainable while remaining straightforward to use in the field.
