ATN ODIN LT 640 3-12x35mm Thermal Viewer

Description

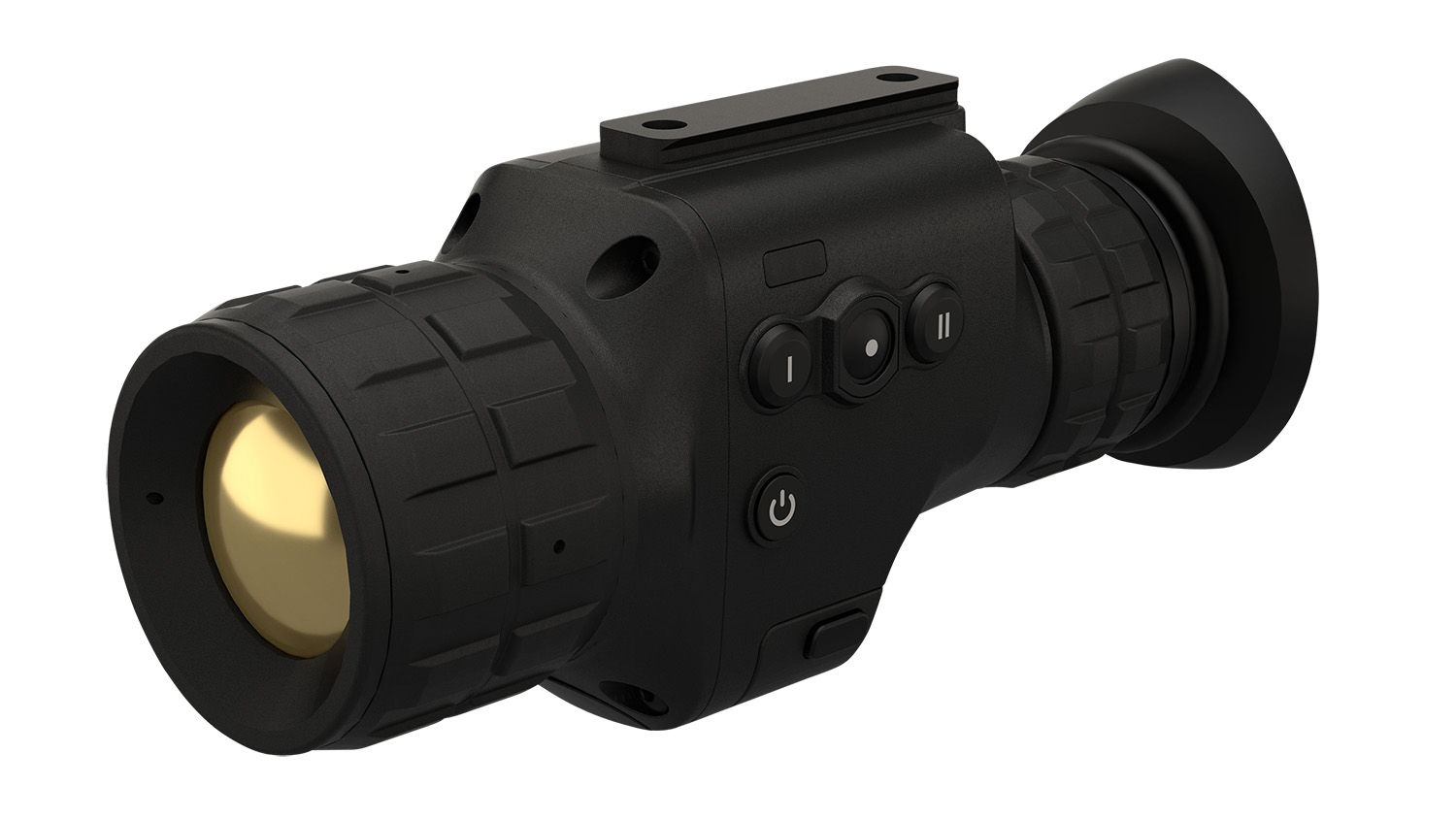

The ATN ODIN LT 640 is a compact thermal monocular driven by the Obsidian LT core, designed for handheld use or helmet/head mounting. It features a 35 mm objective and a 640×480, 12 µm sensor operating at 60 fps for reliable thermal detection. The unit includes a 1280×960 px display, multiple color modes and multi-reticle options for adaptable observation. Supplied accessories include a soft carry bag, battery, eye cup, manual and lens cloth, and the ODIN LT 640 is built to perform across a wide operating temperature range.

Key Specifications

• The sensor resolution is 640×480.
• The objective lens is 35 mm.
• Magnification ranges from 3-12x.
• The field of view is 12.60 x 9.40 degrees.
• The display resolution is 1280×960 px.
• The frame rate is 60 fps.
• The core is the ATN Obsidian Core LT.
• The standard battery type is 1 x CR123A with a typical runtime of 2.5 hrs (optional rechargeable battery up to 5 hrs).
• The weight is 12.06 oz / 342 g.
• The operating temperature range is -20°F to +120°F (-28°C to 48°C).

Compact and versatile, the ATN ODIN LT 640 pairs a high-resolution thermal sensor with practical magnification and a rugged, weather-resistant package. Its lightweight, mountable design and clear display modes make it well suited for outdoor observation, search and rescue tasks, and professional field use where a reliable thermal imaging tool is required.
